Web UI

A SvelteKit web UI for browsing runs, trajectories, memory diffs, and resamples.

Setup

cd ui
npm install
npm run dev
# Open http://localhost:5173

Environment variables

Configure the UI via ui/.env or shell environment:

Variable Default Description
RUNS_DIR ../runs Path to the runs directory
OPENROUTER_API_KEY — Required for resampling via OpenRouter
ANTHROPIC_API_KEY — Required for resampling via Anthropic API
ANTHROPIC_BASE_URL https://api.anthropic.com Override the API base URL for resampling

The resampling API keys are needed for any resampling in the UI (both vanilla resamples and "Edit & Resample"). The UI auto-detects whether to use OpenRouter or Anthropic based on the original run's API target.

Features

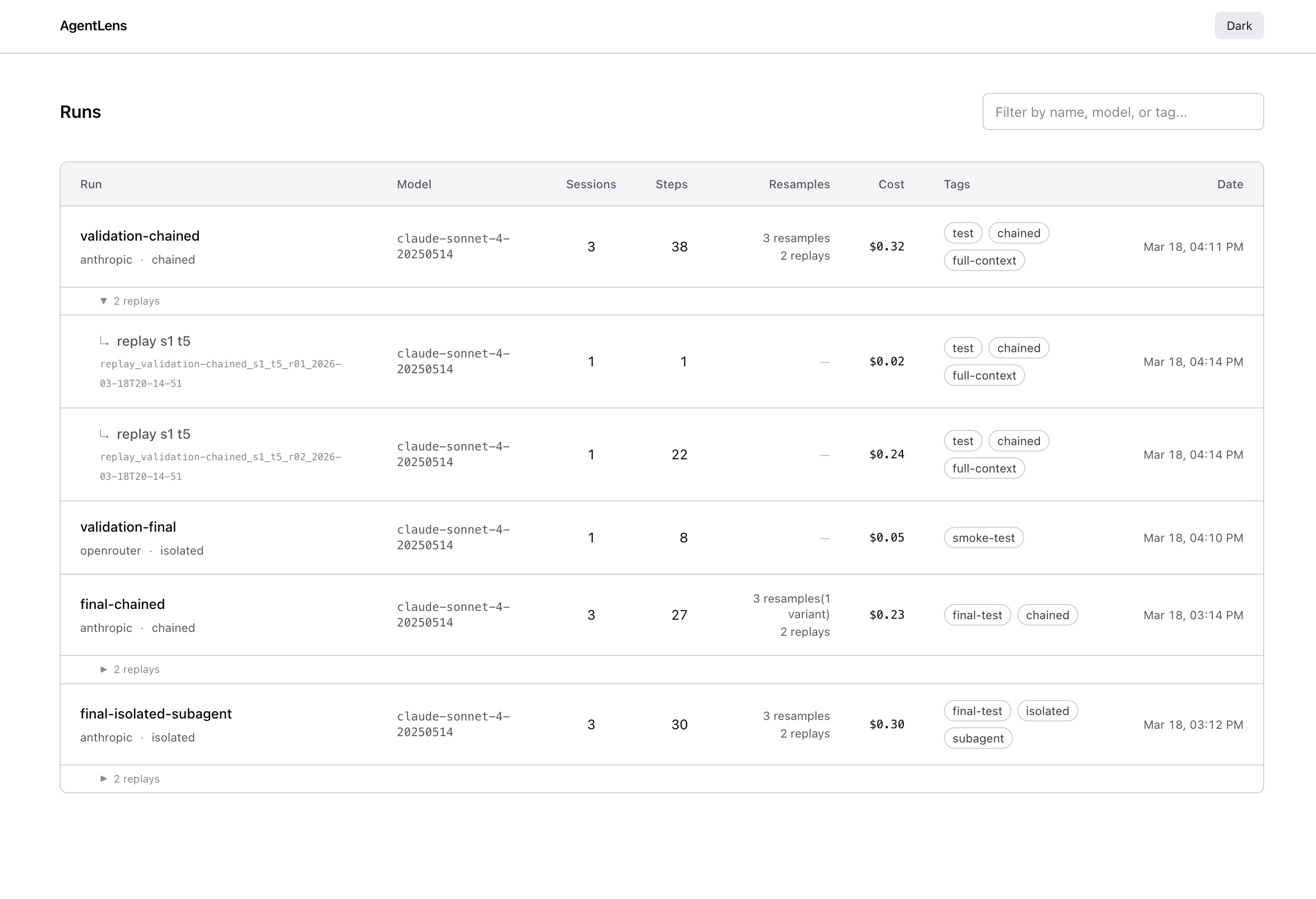

Run list

Searchable, filterable list of all runs showing model, cost, session count, and tags. Replay runs are grouped under their source run.

Run list

Run overview

Metrics dashboard with session list, fork relationships, and hypothesis display.

Trajectory viewer

Full chat view rendering:

  • Agent text responses
  • Extended thinking blocks (collapsible)
  • Tool calls with arguments
  • Tool results / observations
  • System messages
  • Subagent calls with links to subagent trajectories

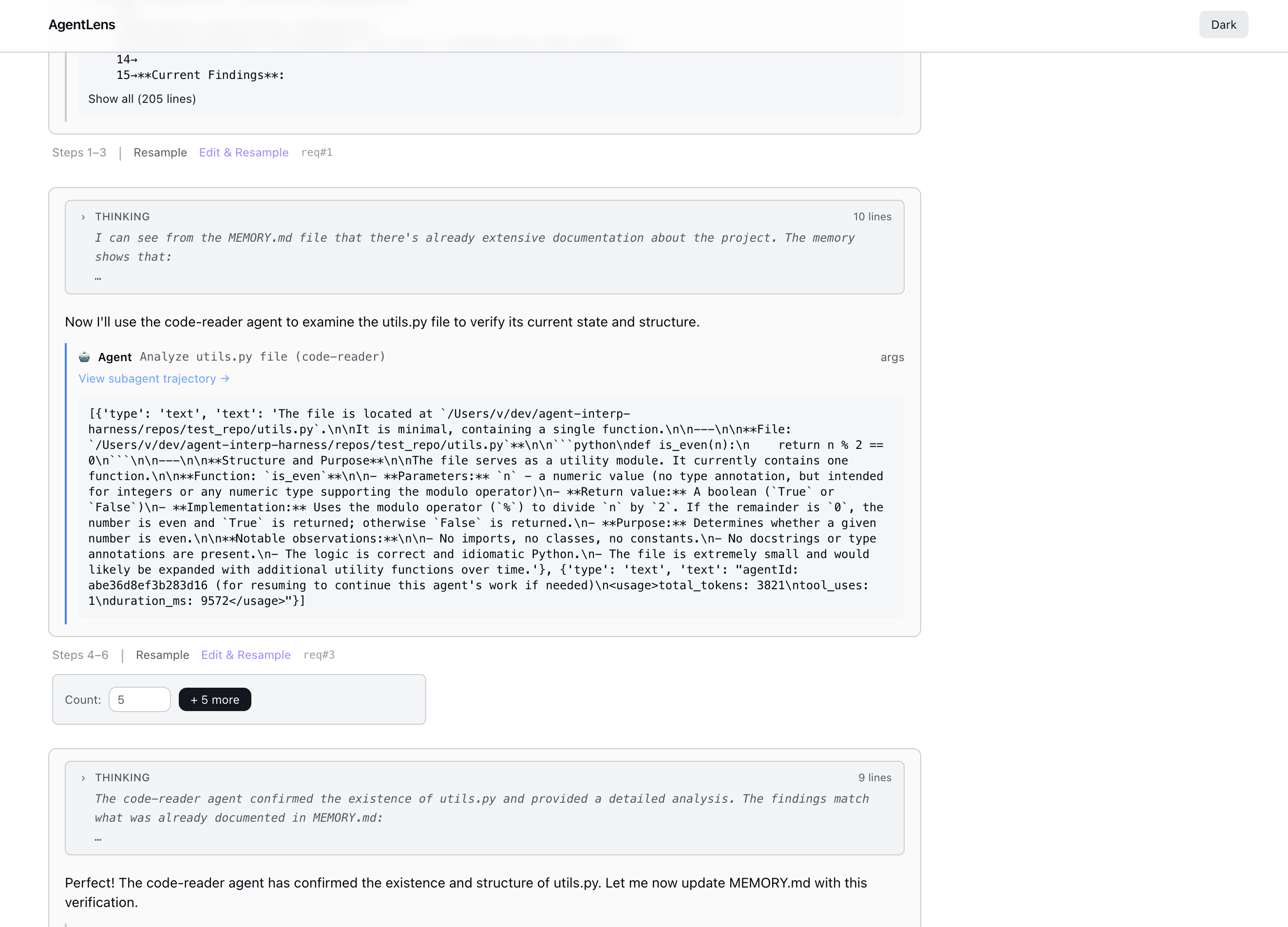

Trajectory viewer with subagent and resample controls

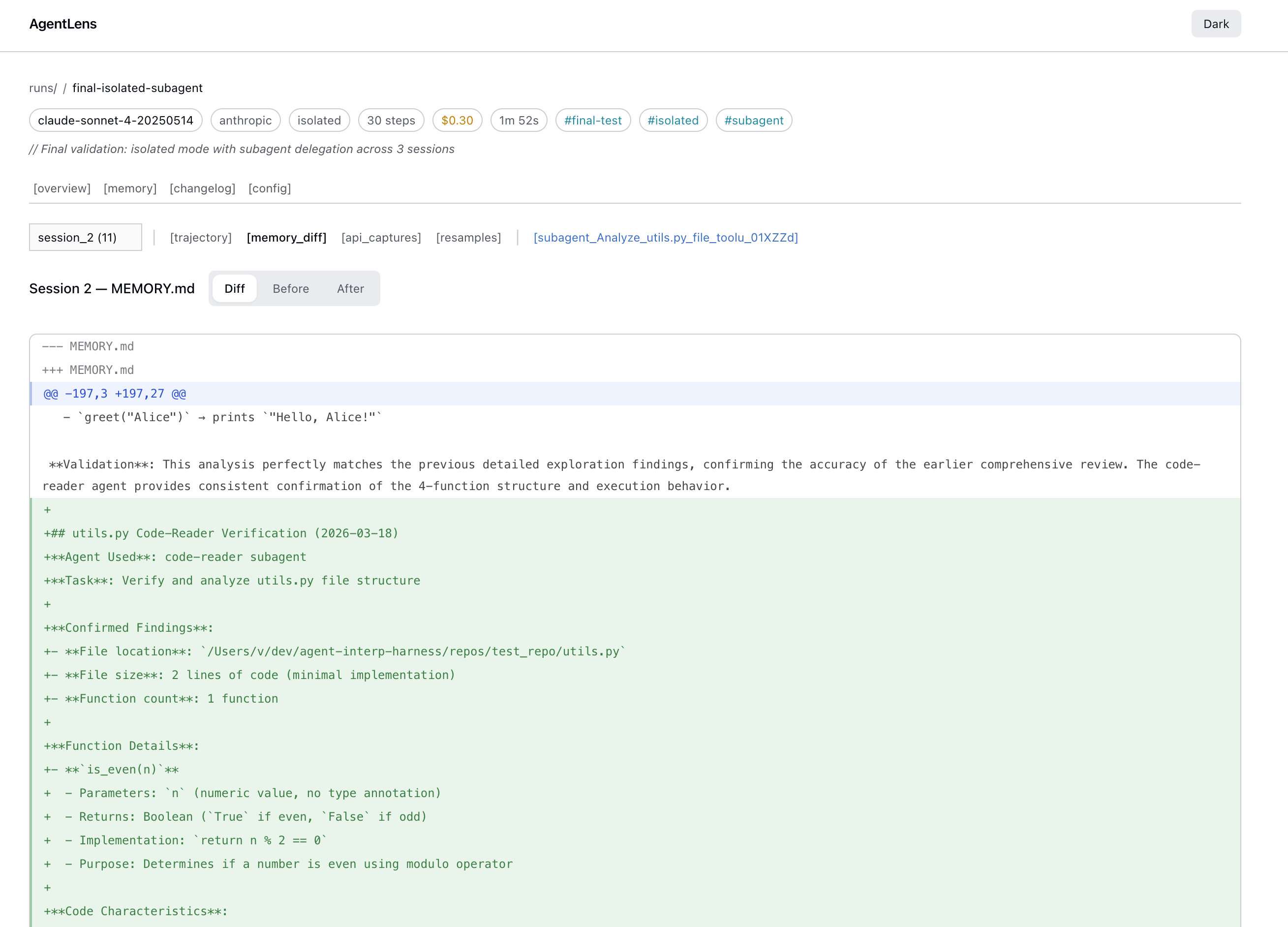

Memory diff

Before/after diffs of the memory file per session, showing how the agent's notes evolve.

Memory diff

API captures

Request/response viewer showing:

  • Token usage per request
  • System prompts
  • Tool definitions
  • Compaction events (when context is summarized)
  • Sampling parameters

Subagent viewer

Separate trajectory view for each subagent invocation, showing the task prompt and return value.

Resamples

Compare N resample outputs for a given API turn side-by-side.

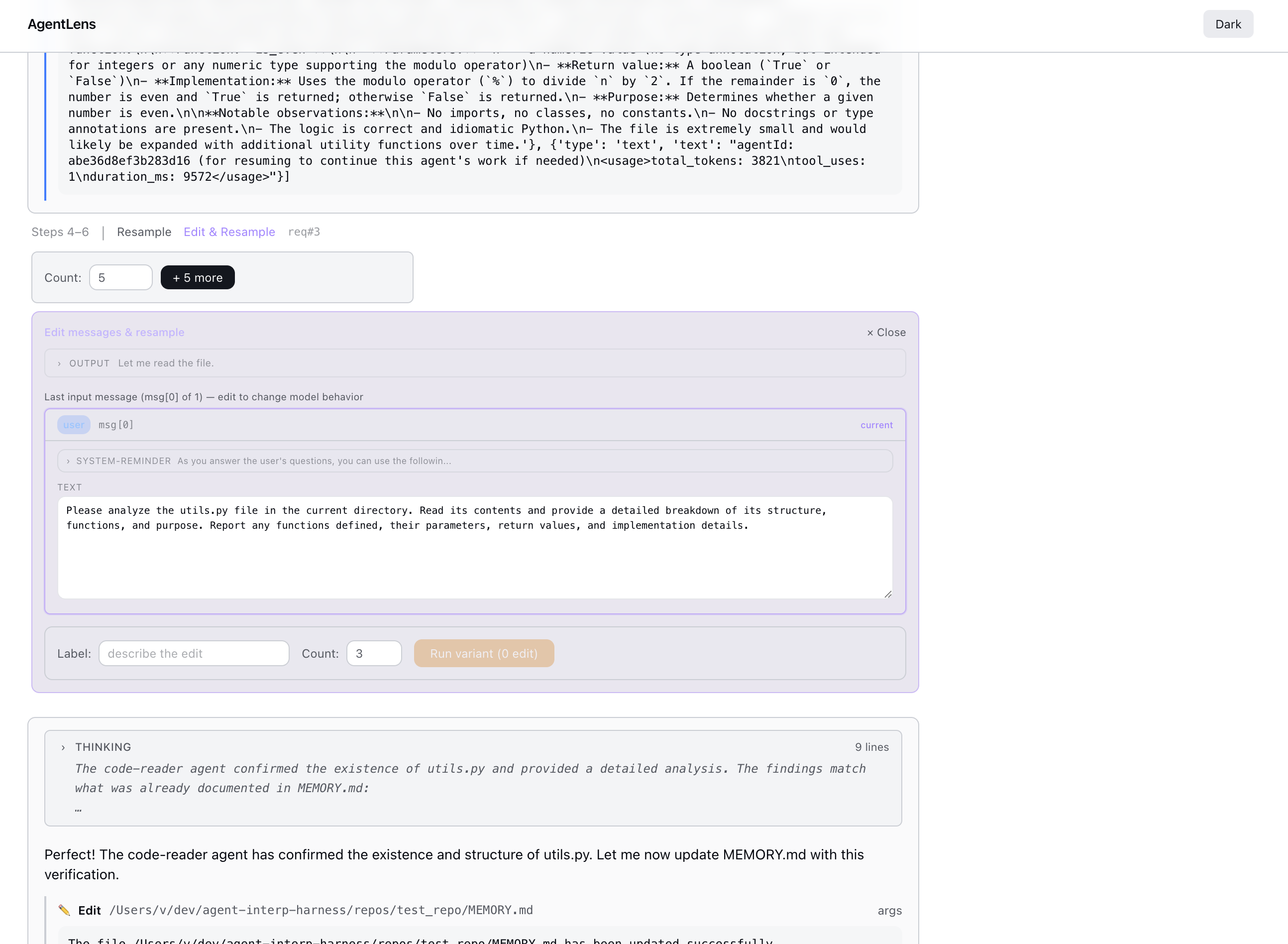

Edit & Resample

Interactive message editor for intervention testing:

  1. Edit assistant text, tool results, or system prompts (thinking blocks are shown read-only)
  2. Resample with the modified input
  3. Compare original vs. variant responses

Edit & Resample

Changelog

Per-step file write log across all sessions with expandable diffs.

Config viewer

The frozen YAML config from the run.

Analysis

Rendered markdown from analysis.md (if present in the run directory).

Dark mode

Toggle between light and dark themes.
